Image Lite

Image Lite is a focused AI image generator built with TanStack Start and the ShipAny SaaS engine. It combines a public text/reference-image generator with accounts, credits, subscriptions, My Creations, RBAC, and an admin console.

Stack

• TanStack Start, Vite 8, Nitro, React 19, and TypeScript
• Tailwind CSS 4 and shadcn/ui v4
• TanStack Query, Router, Form, and Table
• better-auth, Drizzle ORM, and Paraglide JS
• SQLite for local development; PostgreSQL, MySQL, Turso, or Cloudflare D1 in production
• Cloudflare Workers, D1, R2, and Hyperdrive support

Local development

Requirements

• Node.js 22+
• pnpm 10+
• OpenSSL

Enable pnpm through Corepack if necessary:

corepack enable

1. Install and configure

pnpm install
cp .env.example .env.development

Generate two independent secrets:

openssl rand -base64 32
openssl rand -base64 32

Put the first value in AUTH_SECRET and the second in CONFIG_ENCRYPTION_KEY inside .env.development. Never commit that file.

2. Prepare the local database

pnpm db:setup
pnpm db:push
pnpm rbac:init \
  --admin-email=admin@example.com \
  --admin-password=choose-a-local-password

db:push directly synchronizes the development database and may be destructive. Do not use it against a production database.

3. Start the app

pnpm dev

Open:

• App: http://localhost:3000
• Sign in: http://localhost:3000/sign-in
• Admin: http://localhost:3000/admin

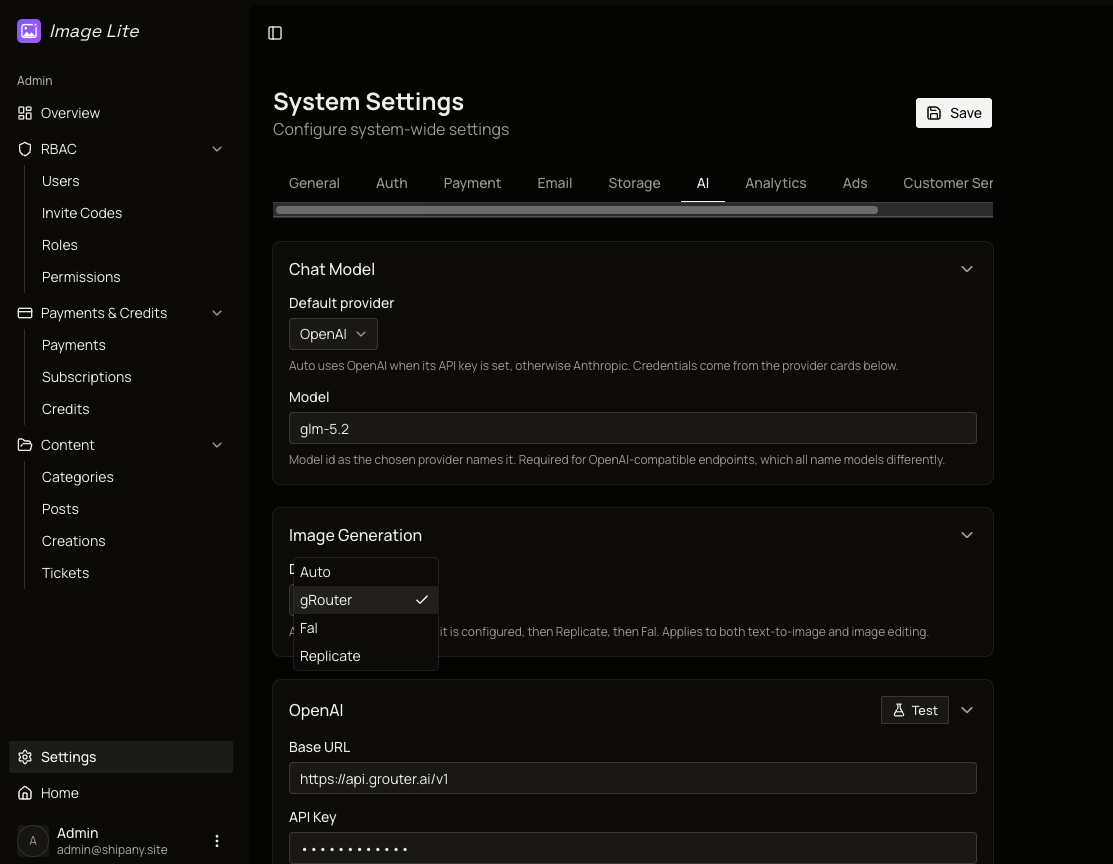

After signing in as the administrator, configure AI, storage, payments, email, OAuth, and analytics under Admin → Settings. Provider credentials belong in the admin settings; environment variables are only fallback values.

Debugging and verification

Command	Purpose
pnpm dev	Start Vite on port 3000 with hot reload
pnpm build	Build the production client and Nitro server
pnpm start	Run the generated Node server from .output/
pnpm format:check	Check formatting without changing files
pnpm db:studio	Inspect the current database in Drizzle Studio
pnpm db:push	Sync schema changes to a development database
pnpm db:generate	Generate reviewable production migration SQL
pnpm db:migrate	Apply migrations to a direct database connection

Use .env.development as the single local environment file. Conflicting values in .env.local can override it and commonly cause database or auth origin problems.

Before pushing code, run:

pnpm format:check
pnpm build

To test the generated Node bundle locally:

pnpm build
pnpm start

Common local problems

Symptom	Fix
Database tables are missing	Run pnpm db:setup and pnpm db:push
Sign-in reports an invalid origin	Keep VITE_APP_URL=http://localhost:3000
Image generation is unavailable	Configure an AI provider in Admin → Settings
Reference-image upload fails	Configure public R2/S3 storage in Admin → Settings
Admin returns 403 after assigning a role	Sign out and sign in again

Environment variables

The committed .env.example intentionally contains only the local essentials.

Variable	Required	Notes
VITE_APP_URL	Yes	Public URL used by auth, callbacks, and SEO
VITE_APP_NAME	Yes	Product name shown in the UI
DATABASE_PROVIDER	Yes	sqlite, postgresql, mysql, turso, or d1
DATABASE_URL	Local/Node	Direct database connection string
AUTH_SECRET	Yes	Generate with openssl rand -base64 32
CONFIG_ENCRYPTION_KEY	Recommended	Encrypts secrets saved from Admin → Settings

Only public browser-visible values may use the VITE_ prefix. Never expose database credentials, API keys, or auth secrets through VITE_* variables.

Database changes

For development:

pnpm db:push

For production, generate and review a migration before applying it:

pnpm db:generate
# Review the SQL under drizzle/.
pnpm db:migrate

src/config/db/schema.ts and drizzle/ are working files and are ignored by Git. The committed dialect templates live under src/config/db/.

Deploy to Cloudflare Workers

Cloudflare Workers with D1 is the default deployment target. Production image upload also requires R2 or another public S3-compatible storage provider; a Worker has no persistent writable filesystem.

Recommended deployment

In a compatible coding-agent environment, run:

/deploy-cloudflare

The project deployment skill performs the build, creates or reuses D1 or Hyperdrive, applies migrations, seeds RBAC, uploads secrets, configures the production URL, deploys, and smoke-tests the result. It always asks before the final production deployment. Run it again for subsequent releases.

Manual D1 deployment

1. Authenticate and create the working config

npx wrangler login
cp wrangler.example.jsonc wrangler.jsonc
npx wrangler d1 create image-lite-db

In the ignored wrangler.jsonc, replace the D1 placeholder with the returned database ID. Keep the binding name DB, DATABASE_PROVIDER set to d1, and migrations_dir set to drizzle.

2. Set the production URL

Create the ignored .env.production:

VITE_APP_URL=https://image-lite.<your-subdomain>.workers.dev
VITE_APP_NAME=Image Lite
DATABASE_PROVIDER=d1

Set the same VITE_APP_URL and VITE_APP_NAME in wrangler.jsonc vars. They must match because the URL is used during both build and runtime.

For a custom domain, add this to wrangler.jsonc and use the same domain for VITE_APP_URL:

"routes": [{ "pattern": "images.example.com", "custom_domain": true }]

The domain or its parent zone must already exist in the Cloudflare account.

3. Generate and apply migrations

DATABASE_PROVIDER=d1 pnpm db:setup
DATABASE_PROVIDER=d1 pnpm db:generate
npx wrangler d1 migrations apply image-lite-db --remote

Review the generated SQL under drizzle/ before applying it.

4. Seed RBAC

Remote D1 is accessed through a Worker binding, so seed a local Wrangler D1 and import only the RBAC rows:

npx wrangler d1 migrations apply image-lite-db --local

LOCAL_D1=$(find .wrangler/state -name "*.sqlite" -path "*d1*" | head -1)
DATABASE_PROVIDER=sqlite DATABASE_URL="file:$LOCAL_D1" pnpm rbac:init

sqlite3 "$LOCAL_D1" ".dump role permission role_permission" \
  | grep "^INSERT INTO" \
  | sed 's/^INSERT INTO/INSERT OR IGNORE INTO/' \
  > /tmp/image-lite-rbac.sql

npx wrangler d1 execute image-lite-db \
  --remote \
  --file=/tmp/image-lite-rbac.sql

Manual RBAC seeding requires the sqlite3 CLI.

5. Add Worker secrets and deploy

openssl rand -base64 32 | npx wrangler secret put AUTH_SECRET
openssl rand -base64 32 | npx wrangler secret put CONFIG_ENCRYPTION_KEY
pnpm cf:deploy

Never put secrets in wrangler.jsonc vars. After the first deployment, synchronize the exact deployed URL in .env.production and wrangler.jsonc, then run pnpm cf:deploy again if the URL changed.

6. Finish production setup

1. Sign up through /sign-up.

2. Promote the first administrator with /deploy-cloudflare --admin=<email>. For a fully manual deployment, run:

   npx wrangler d1 execute image-lite-db --remote --command="
   INSERT OR IGNORE INTO user_role (id, user_id, role_id)
   SELECT lower(hex(randomblob(16))), u.id, r.id
   FROM user u, role r
   WHERE u.email = 'admin@example.com' AND r.name = 'super_admin'
   "


3. Sign out and sign back in.

4. Configure AI and R2 under Admin → Settings.

5. Verify / and /api/config/public return HTTP 200.

For live Worker errors:

npx wrangler tail

PostgreSQL with Hyperdrive

When using an existing PostgreSQL database:

1. Create Hyperdrive with npx wrangler hyperdrive create image-lite --connection-string="$DATABASE_URL".

2. Set DATABASE_PROVIDER to postgresql in wrangler.jsonc, remove d1_databases, and add a Hyperdrive binding named exactly HYPERDRIVE.

3. Load a local .env.production containing the direct PostgreSQL URL, then prepare and migrate the schema:

   set -a
   . ./.env.production
   set +a

   DATABASE_PROVIDER=postgresql pnpm db:setup
   DATABASE_PROVIDER=postgresql pnpm db:generate
   DATABASE_PROVIDER=postgresql pnpm db:migrate


   Review the generated SQL before running db:migrate.

4. Run pnpm rbac:init against the direct PostgreSQL connection.

5. Add Worker secrets and deploy with pnpm cf:deploy.

The PostgreSQL connection string is a secret. Do not place it in wrangler.jsonc vars; Hyperdrive supplies it at runtime.

Deploy to a Node server

Use PostgreSQL, MySQL, or Turso for multi-instance production. SQLite is only suitable for one instance with persistent storage.

1. Create .env.production with the production URL, database provider and connection, AUTH_SECRET, and CONFIG_ENCRYPTION_KEY.
2. Run NODE_ENV=production pnpm db:setup.
3. Generate and review migrations with NODE_ENV=production pnpm db:generate.
4. Apply them with NODE_ENV=production pnpm db:migrate.
5. Seed roles with NODE_ENV=production pnpm rbac:init.
6. Build with NODE_ENV=production pnpm build.
7. Start with NODE_ENV=production PORT=3000 pnpm start.

Run the server behind TLS and pass production secrets through the hosting platform rather than committing .env.production.

Project layout

src/blocks/          Landing-page sections
src/components/      Reusable UI and shadcn primitives
src/core/            Auth, database, AI, payments, email, and storage
src/modules/         Business services
src/routes/          Pages and API routes
messages/            English and Chinese translations
wrangler.example.jsonc  Cloudflare configuration template

License

Proprietary software. See LICENSE.

Built with ShipAny.
